本頁面包含：
Kordz PRS3 頂級系列 4K 60P HDMI 線（台灣積中盛公司貨）一條
請注意，PRS3 系列依據長度不同而有不同設計，其中 0.5~5 公尺為被動式，7.5~12.5 公尺為主動式，15~30 公尺為 AOC 主動式光纖。（長度誤差 ±5%）
其中 12.5 公尺到貨時間為三～五天（每週一、週四結單），15 公尺以上約一週到兩週（每週一、週四結單）。如有需要，請儘早下訂。
如果想要追求規格，或是聲音與畫質的極致，你有另外兩種品牌選擇：
嚴選入門款 Avier，追求規格極致，但不要太貴：https://shop.ningselect.com/p/avier8k/
嚴選進階款 AudioQuest，同時追求規格、畫質、音質，但貴了不少：https://shop.ningselect.com/p/aqcarbon48/
—
海外的朋友如要下單，請記得在這邊計算國際運費一併結帳，才能在第一時間出貨。運費連結在此：
國際運費 自助繳費 https://shop.ningselect.com/p/airmail/
—
以下原廠規格：
0.5M ~5M
HDMI CERTIFICATION ≤ 5.0m PASSIVE
HDMI CTS Certification: High Speed with Ethernet
DPL Labs Certified Data Rate: 6.0Gbpsc, 17.82Gbps aggregate
Supported Data Rate: > 6.0Gbpsc, 17.82Gbps aggregate (4K UHD)
Supported HDMI Clock: 27-340MHz
MECHANICAL
Cable Diameter: 0.5m – 3.0m: 30 AWG, 5.7mm/0.22” ø | 5m: 28 AWG, 6.5mm/0.26” ø
Mounting Length: 0.5m – 3.0m: 30AWG, 47.0mm/1.85” | 5m: 28 AWG, 56mm/2.20”
Cable Bend Radius: 0.5m – 3.0m: 30 AWG, 24.0mm/0.94” | 5m: 28 AWG, 28.0mm/1.02”
Retention Force (nominal): 29.7N (3kg / 6.6lbs) +10/-5%
APPLICATION SPECIFICATIONS
Video Format Support – Data rate per channel / Aggregate, TMDS Bandwidth
480i/p, 576i/p: ≤ 540Mbpsc/1.62Gbps, 270MHz
720p/1080i: 742.5Mbpsc/2.22Gbps, 371.25MHz
1080p – 8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 4:2:0:
23.98/24/29.97/30 – 742.5Mbpsc/2.22Gbps, 371.25MHz
50/59.94/60 – 1.485Gbpsc/4.455Gbps, 742.5MHz
3D-24/30 – 1.485Gbpsc/4.455Gbps, 742.5MHz
3D-50/60 – 2.97Gbpsc/8.91Gbps, 1.485GHz
1080p – 10/12/16-bit RGB/YCbCr 4:4:4:
50/59.94/60fps – 1.86-2.97Gbpsc/5.57-8.91Gbps, ≤ 1.485GHz
2160p (UHD/4K)
HDMI 1.4b – 8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 4:2:0:
4096x2160p/24 (SMPTE) – 2.97Gbpsc/8.91Gbps, 1.485GHz
3840x2160p/23.98/24/29.97/30 – 2.97Gbpsc/8.91Gbps, 1.485GHz
HDMI 2.0 – 8-bit YCbCr 4:2:0:
2160p*/50/59.94/60 – 2.97Gbpsc/8.91Gbps, 1.485GHz
VESA Graphics: Supports all as defined by HDMI 2.0 specification, up to 17.82Gbps
Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, ITU-BT.2020
Audio Formats Support: PCM 2.0-7.1, DD/DTS HD 7.1, 3D Audio (10.2 | 22.2 | 30.2ch)
HDMI Audio Return Channel: Supported, System dependant.
TECHNICAL SPECIFICATIONS
CONSTRUCTION
Primary Conductors: Solid 24-28AWG OFC, length dependent
Insulation on TMDS: HDPE
Insulation on 4C + HEAC Pairs: HDPE/Foamed PE/Polyolefin, length dependent
Shielding on TMDS Pairs: Al/Mylar
Shielding Overall: AL/Mylar + AL braid 80% coverage
Cable Jacket: UL CMG fire rated PVC
HDMI Connector Shell: Pressed steel with dual grip tabs, 1μ” 24K Gold plated
HDMI Connector Pins: Solid OFC, 15μ” 24K Gold plated
Termination: Contactless IR induction soldering
HDMI Backshell: Charcoal powder coated with stoving varnish die-cast zinc alloy shell assembly
HDMI Active Backshell: Orange & Charcoal powder coated with stoving varnish die-cast zinc alloy shell assembly
HDMI CERTIFICATION 10.0m – 30.0m ACTIVE
HDMI CTS Certification: High Speed with Ethernet
DPL Labs Certified Data Rate: 6.0Gbpsc, 17.82Gbps aggregate
Supported Data Rate: ≥ 6.0Gbpsc, 17.82Gbps agg (4K UHD)
Supported HDMI Clock: 27-340MHz

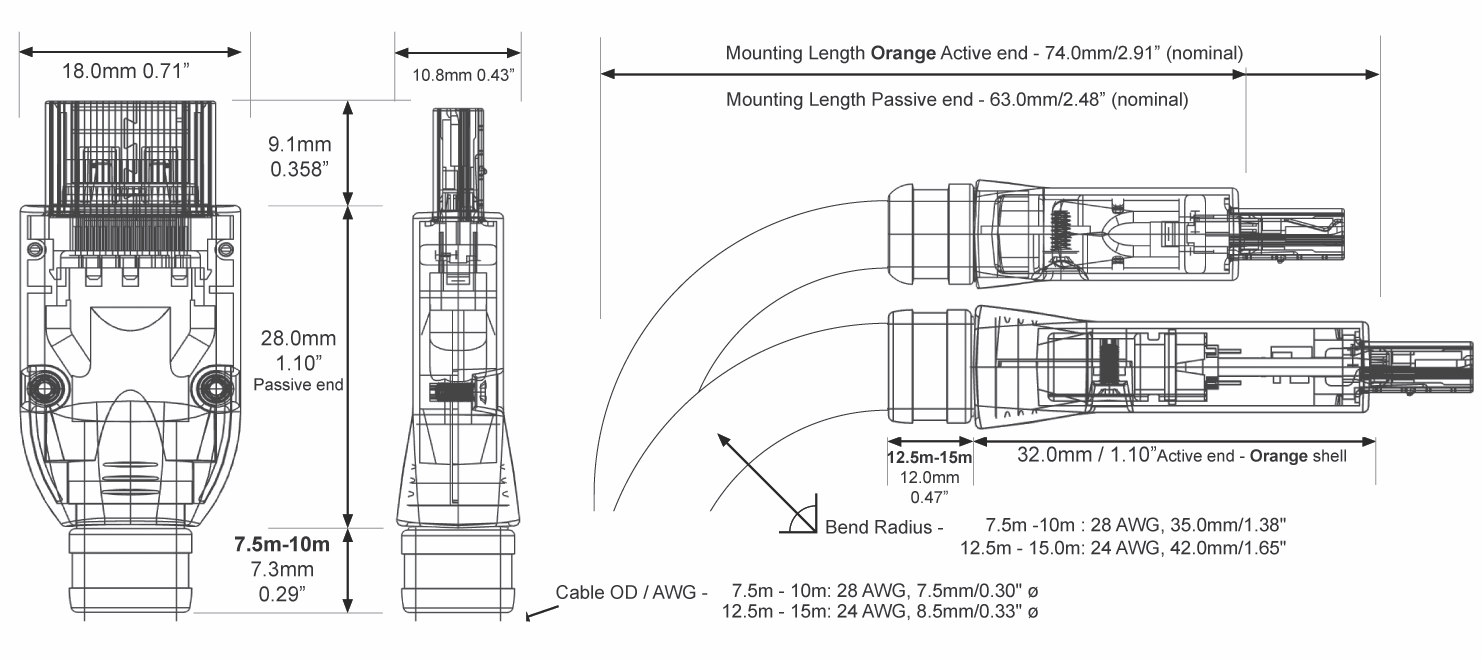

MECHANICAL
Cable Diameter: 7.5m – 10.0m: 28 AWG, 7.5mm/0.30” ø | 12.5m: 24 AWG, 8.5mm/0.33” ø
Mounting Length: Source End: 63.0mm/2.48” & Display End: 74.0mm/2.91”
Cable Bend Radius: 7.5m – 10.0m: 28 AWG, 35.0mm/1.38” | 12.5m: 24 AWG, 24.0mm/1.65”
Retention Force (nom): 29.7N (3kg / 6.6lbs) +10/-5%
![PRS3 Active wire & dimensions [spec sheet].png](https://images.squarespace-cdn.com/content/v1/56029752e4b0763e15c4e7ca/1536834454580-TIJ7UKHTI24CTFBI02IY/ke17ZwdGBToddI8pDm48kFA8ctgJl6gZdxkw3gR1T4cUqsxRUqqbr1mOJYKfIPR7LoDQ9mXPOjoJoqy81S2I8N_N4V1vUb5AoIIIbLZhVYxCRW4BPu10St3TBAUQYVKchoAxjjsG-rIXUXsHknu6RI94dxsv1Z4SixPikHG04_rJbbe8FzgH-4Dl63KV_YIP/PRS3+Active+wire+%26+dimensions+%5Bspec+sheet%5D.png)
APPLICATION SPECIFICATIONS
Video Format Support – Data rate per channel / Aggregate, TMDS Bandwidth
480i/p, 576i/p: ≤ 540Mbpsc/1.62Gbps, 270MHz
720p/1080i: 742.5Mbpsc/2.22Gbps, 371.25MHz
1080p – 8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 4:2:0:
23.98/24/29.97/30 – 742.5Mbpsc/2.22Gbps, 371.25MHz
50/59.94/60 – 1.485Gbpsc/4.455Gbps, 742.5MHz
3D-24/30 – 1.485Gbpsc/4.455Gbps, 742.5MHz
3D-50/60 – 2.97Gbpsc/8.91Gbps, 1.485GHz
1080p – 10/12/16-bit RGB/YCbCr 4:4:4:
50/59.94/60fps – 1.86-2.97Gbpsc/5.57-8.91Gbps, ≤ 1.485GHz
2160p (UHD/4K)
HDMI 1.4b – 8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 4:2:0:
4096 x 2160p/24 (SMPTE) – 2.97Gbpsc/8.91Gbps, 1.485GHz
3840 x 2160p/23.98/24/29.97/30 – 2.97Gbpsc/8.91Gbps, 1.485GHz
HDMI 2.0 – 8-bit YCbCr 4:2:0:
2160p*/50/59.94/60 – 2.97Gbpsc/8.91Gbps, 1.485GHz
HDMI 2.0 mode – 8-bit 4:4:4, 10/12-bit 4:2:2 or 16-bit 4:2:0:
2160p*/50/59.94/60-2D (CEA-861-F) – 5.94Gbpsc/17.82Gbps, 2.97GHz
2160p*30-3D – 5.94Gbpsc/17.82Gbps, 2.97GHz
VESA Graphics: Supports all as defined by HDMI specification
Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, ITU-BT.2020
Audio Formats Support: PCM 2.0-7.1, DD/DTS HD 7.1, 3D Audio (10.2 | 22.2 | 30.2ch)
HDMI Audio Return Channel: Supported, System dependant
MODELS
Length: 7.5m, 24’7″
Model: K36136-0750-CH
AWG: 28
Technology: Spectra7 Active, Directional
Length: 10.0m, 32’9″
Model: K36136-1000-CH
AWG: 28
Technology: Spectra7 Active, Directional
Length: 12.5m, 41’0″
Model: K36136-1250-CH
AWG: 24
Technology: Spectra7 Active, Directional
