Niagara 7000 takes a holistic, science-based approach to AC power technology and represents a comprehensive solution to the ever-increasing noise that plagues our power lines.
In the Niagara 7000, you’ll find optimized radio-frequency lead directionality, run-in capacitor forming technologies developed by Jet Propulsion Laboratories and NASA, and AC inlet and outlet contacts with heavy silver plating over extreme-purity copper assuring the tightest grip possible.
The Niagara 7000 uses our patented AC Ground-Noise-Dissipation, the world’s first Dielectric-Biased AC Isolation Transformers, and the widest bandwidth-linearized noise-dissipation circuit in the industry. Our unique passive/active Transient Power Correction Circuit features an instantaneous current reservoir of over 90 amps peak, specifically designed for today’s current-starved power amplifiers.
Most AC power products featuring “high-current outlets” merely minimize current compression; the Niagara 7000 corrects it.
With an AudioQuest Niagara 7000, music lovers can finally experience the clarity, dimensionality, frequency extension, dynamic contrast, and grip their A/V systems have been capable of delivering—if only the power had been right!

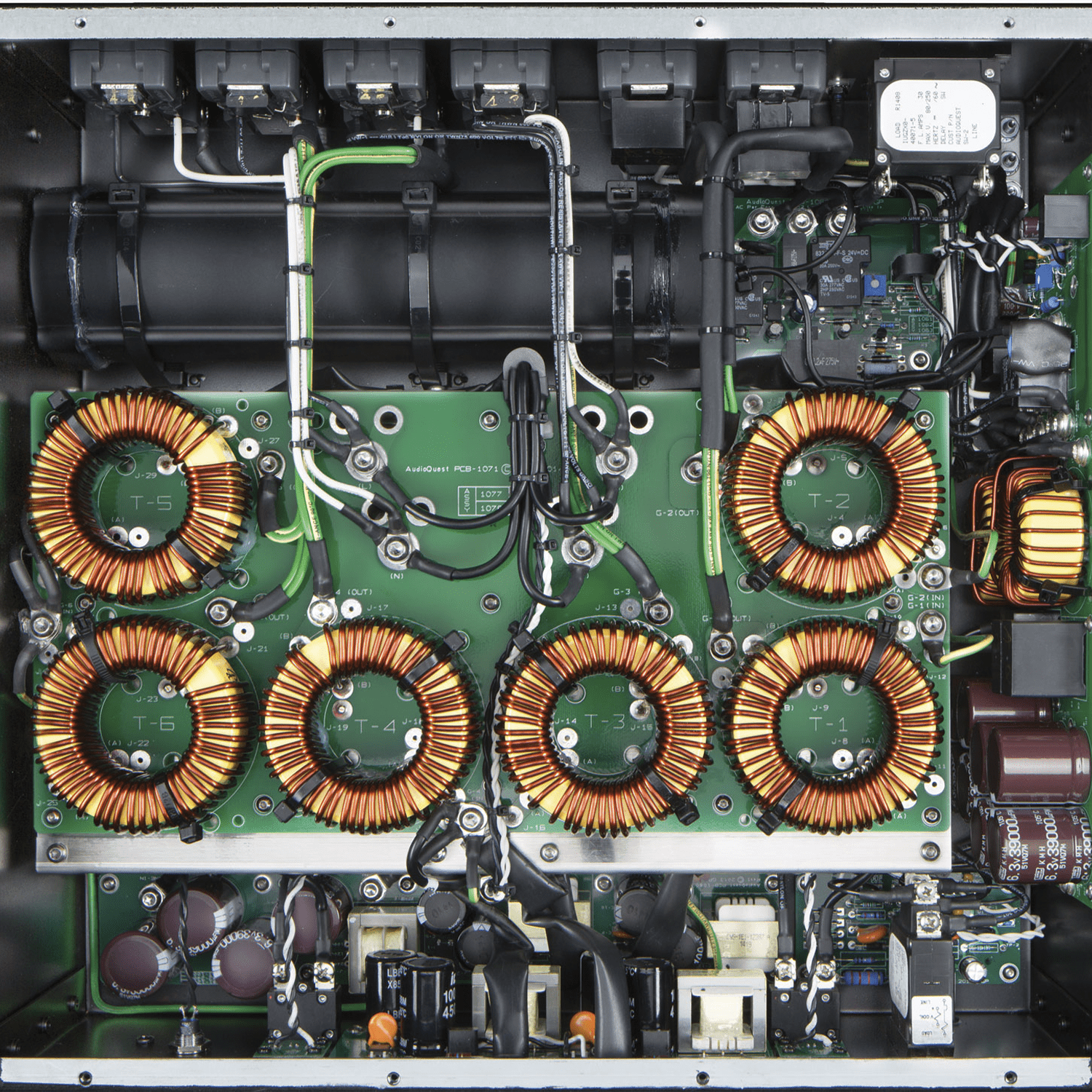

Patented Dielectric-Biased Symmetrical Power Isolation Transformers: 2 for source component outlet banks
Transient Power Correction: 90 amps peak. Provides a current reservoir for any power amplifier (up to 25mS)
Level-X Ultra-Linear Noise-Dissipation Technology: More than 23 octaves differential-mode filtering (3kHz–1GHz in excess of 24dB reduction) and 20 octaves common-mode filtering (60Hz–100MHz in excess of 30dB reduction) with linear response, optimized for varying line and load impedance
Patented Ground Noise-Dissipation System (All outlets): 6 banks of direction-controlled ground noise-dissipation
Non-Sacrificial Surge Protection: Withstands multiple AC surges and spikes up to 6000V/3000A without sustaining damage–sonically non-invasive
Maximum RMS Input Current: 20 Amps (RMS)
Maximum RMS Current per Source Component Output Bank: 5 Amps (RMS)

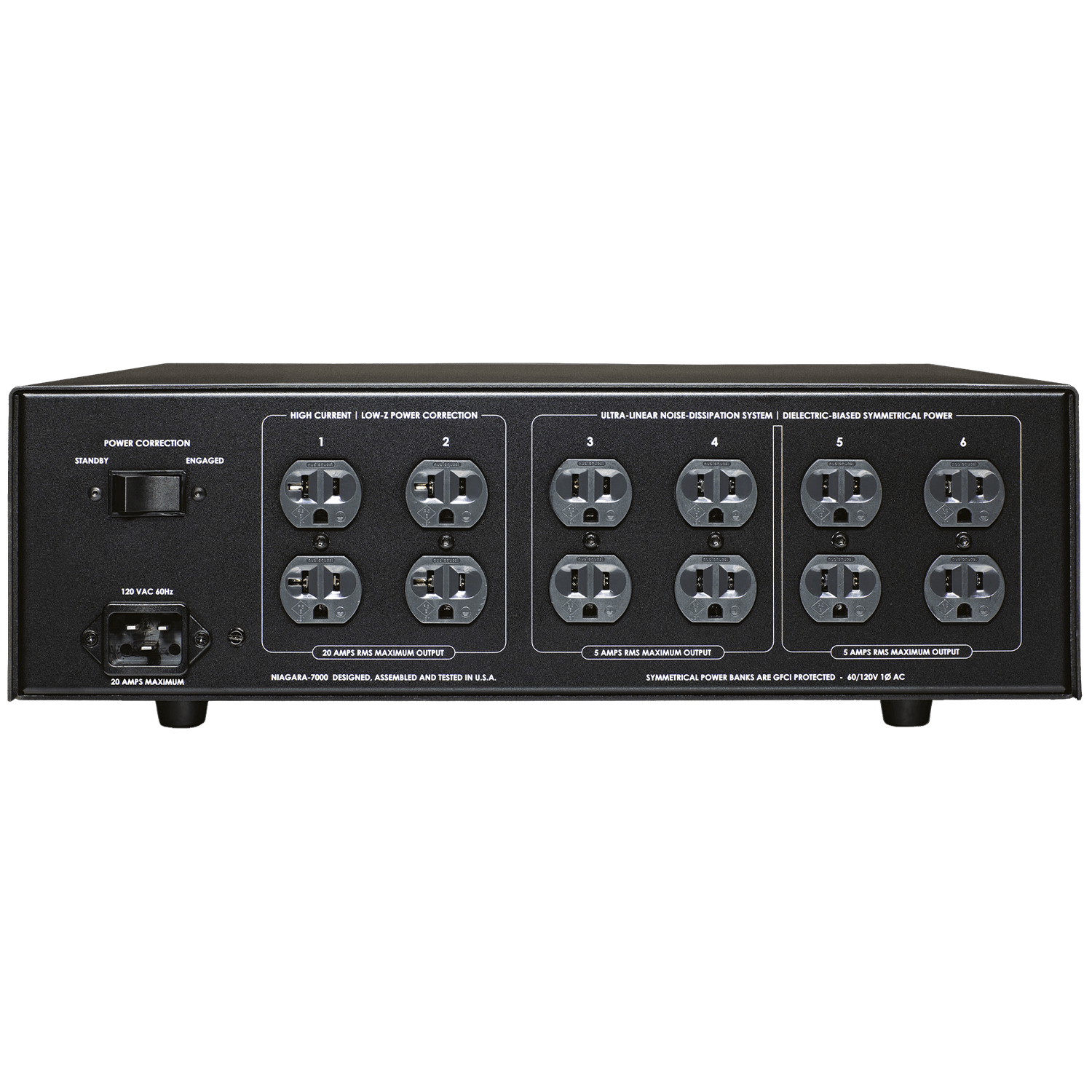

Outlets: Source (8); High-Current (4)
